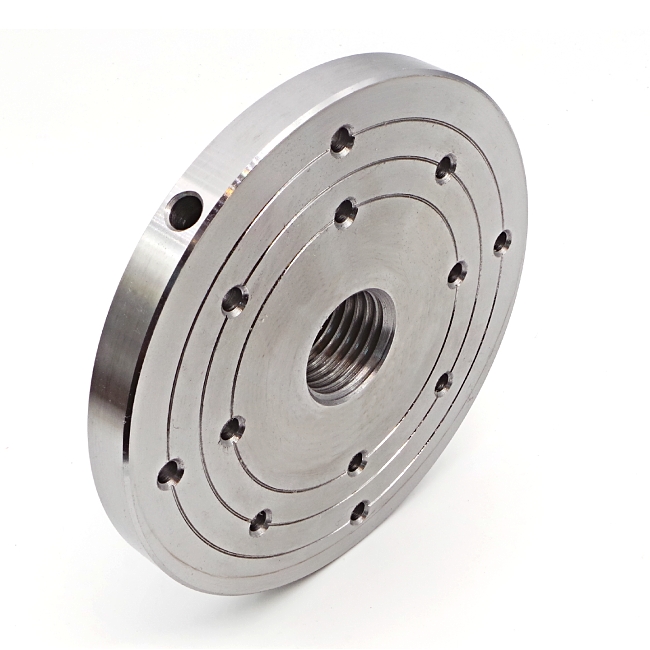

80mm woodturning lathe faceplate - 1 1/2 inch x 6 tpi Dual L/R thread

Produced in the same factory as our popular Versachuck wood lathe chucks, we have 150mm (6 inch) woodturning faceplates, 105mm (4 inch) woodturning faceplates and 80mm (3 inch) woodturning faceplates, in thread sizes to suit the most popular lathe spindle sizes.

All our faceplates are manufactured to give high performance and excellent value for money, and feature holes laid out on metric radial pitches to ensure that you can always get sufficient screws into the workpiece somewhere. The holes are countersunk on the work face side to ensure that any "pull-out" caused by the mounting screws on of the surface of the workpiece this will not prevent the piece lying flat and secure against the faceplate.

These faceplates are threaded with a dual left and right handed thraed to suit 1¹/₂" x 6tpi lathe spindles.

Lathes using this thread include Harrison Graduate and its successors, and the Appolo Professional. The dual L/R thread allows the cuck to be mounted on either the inboard or the outboard side of headstock, removing the need for a second backplate or chuck.
